37: THERMAL EXPANSION (A) Use expansion or contraction of material by changing its temperature (as in transformation of properties) (B) Use various materials with different coefficient of thermal expansion transformation of properties ( multiple or composite material with relative difference in thermal or desired or required properties).
EXAMPLE: Shape Memory Alloys, Bi-metallic Strips (in Thermostats)
SYNONYMS: Relative Change
ACB:
The principle refers to the utilization of the phenomenon of thermal expansion or contraction to improve a system or solve a problem. Thermal expansion is the tendency of matter to change its shape, area, and volume in response to a change in temperature. This principle suggests taking advantage of temperature-induced changes in the dimensions of materials. When temperature increases, most materials expand, and when it decreases, they contract. Systems that can automatically adjust to changes in temperature without external intervention represent an application of the “Thermal Expansion” principle. Such self-adjusting mechanisms can contribute to improved reliability and performance.
Bimetallic strips, consisting of two different metals with different coefficients of thermal expansion, are a common example of applying this principle. When heated or cooled, these strips bend due to the uneven expansion or contraction of the metals, and this bending can be harnessed for various purposes, such as in thermostats. The choice of materials with specific thermal expansion properties can be crucial in the application of this principle. Selecting materials that expand or contract in a predictable and controlled manner can contribute to the overall effectiveness of a design.
Composite materials and alloys are both engineered materials with specific properties tailored for particular applications. Use of expansion or contraction of materials by changing their temperature, along with shape memory effects in metals, are phenomena related to the material’s ability to undergo reversible changes in shape or size in response to external stimuli, such as temperature variations.
Shape Memory Effect in Metals: Shape memory alloys (SMAs) are metallic materials that exhibit a unique property known as the shape memory effect (SME). This effect allows them to “remember” their original shape and recover it after deformation when subjected to specific temperature changes. SMAs typically have two stable phases: austenite (high-temperature phase) and martensite (low-temperature phase). By undergoing a reversible phase transformation between these phases, SMAs can exhibit significant changes in shape or size in response to temperature variations. Expansion/Contraction of Materials with Temperature Changes: Many materials, including metals, polymers, and ceramics, undergo expansion or contraction when their temperature changes. This behavior is governed by the material’s coefficient of thermal expansion (CTE), which describes how much the material’s dimensions change per degree of temperature change. When heated, most materials expand due to increased molecular vibrations, while cooling leads to contraction as molecular motion decreases.
In shape memory alloys, the reversible phase transformation between austenite and martensite phases is accompanied by significant changes in volume and shape. Heating the SMA above a certain temperature (called the transformation temperature or transition temperature) triggers the phase transformation from martensite to austenite, causing the material to revert to its original shape (shape memory effect). Conversely, cooling the SMA below the transition temperature induces the martensitic phase transformation, allowing the material to be easily deformed into a new shape. When heated again, the SMA returns to its original shape.
Thermal properties play a significant role in the sealing of plastics, especially in processes like heat sealing, ultrasonic welding, and induction sealing. These methods utilize heat to create a secure bond between plastic materials, either to form a package or to join plastic components. Heat sealing involves applying heat to a specific area of plastic film or sheet to create a bond. This is commonly used in packaging applications. Heat is applied to raise the temperature of the plastic above its melting point, allowing it to flow and form a seal upon cooling. Efficient heat transfer is crucial to ensure uniform sealing across the material. Ultrasonic welding uses high-frequency vibrations to create friction and heat between plastic parts, causing them to melt and fuse together. Induction sealing involves using electromagnetic induction to heat a metal foil liner in a plastic cap. The heated foil bonds with the container’s neck, providing a secure seal. Hot bar sealing, also known as impulse sealing, uses a heated bar or element to weld two layers of plastic together. It is commonly used in the production of bags and pouches. Thermal impulse sealing combines heat and pressure to seal thermoplastic materials. It is commonly used for packaging and bag sealing. Laser sealing utilizes a laser beam to heat and melt specific areas of plastic, creating a bond. This is often used in precision applications.
Thermal properties play a crucial role in laminations, where layers of materials are bonded together to create a composite structure. Laminations are commonly used in various industries, including packaging, construction, electronics, and manufacturing. Understanding and controlling thermal properties are essential for achieving strong bonds, ensuring product integrity, and meeting specific performance requirements. Heat lamination involves applying heat and pressure to layers of materials, typically with an adhesive layer, to create a bond. Cold lamination uses pressure-sensitive adhesives that do not require heat for activation. It is often used for temperature-sensitive materials. Hot melt lamination involves applying a thermoplastic adhesive in a molten state between layers of materials. Thermal film lamination uses a heat-activated film or foil applied to the substrate. The film bonds to the material when heat and pressure are applied. Vacuum lamination involves using vacuum pressure to press layers of materials together, often with the application of heat and/or adhesives. Resin infusion lamination involves infusing a resin into a fibrous reinforcement material to create a composite structure. Photonic curing involves using intense light, typically from a high-power flash lamp, to cure inks or coatings on flexible substrates. In printing, thermal laminating films are often used to protect and enhance printed materials. These films are heat-activated and adhere to the surface of the printed material.
These examples demonstrate how thermal expansion is utilized in various systems, leveraging materials with different coefficients of thermal expansion to achieve specific transformations or functionalities based on temperature variations: Refrigeration and air conditioning systems use thermal expansion valves that rely on the expansion of a refrigerant in response to temperature changes. The thermal expansion valve adjusts the flow of refrigerant based on temperature variations, optimizing the cooling process within the system. In welding, bimetallic joints can be created by combining materials with different coefficients of thermal expansion. The joint undergoes controlled deformation during the welding process due to differential thermal expansion, leading to a strong and durable bond. Rail tracks are constructed with gaps between sections to accommodate thermal expansion and contraction. The gaps allow the rail sections to expand during hot weather and contract during cold weather, preventing buckling or warping of the tracks. Bimetallic elements are used in steam traps to close or open based on temperature changes. As steam condenses, the temperature decreases, causing the bimetallic element to contract and open the trap, allowing condensate to be removed.
Electronic chips and components mounted on circuit boards. The controlled use of materials with specific coefficients of thermal expansion helps manage thermal stresses in electronic devices during operation and temperature fluctuations, preventing damage. Fire sprinklers often use bimetallic elements that respond to temperature changes. When exposed to heat from a fire, the bimetallic element expands, triggering the release of water to suppress the fire. Piping systems, especially those transporting hot fluids, may include expansion joints or compensators. These compensators allow for thermal expansion and contraction, preventing damage to the piping system due to temperature changes.
The use of thermal expansion in systems that involve multiple materials with different coefficients of thermal expansion helps address contradictions or challenges related to temperature-induced changes in materials: (i) Materials may expand or contract with changes in temperature, leading to dimensional changes that can cause stress, warping, or misalignment in structures or components. Combining materials with different coefficients of thermal expansion allows for controlled and compensatory movements, helping maintain dimensional stability despite temperature variations. (ii) Different materials may respond differently to temperature changes, causing stress or mechanical mismatches. By selecting materials with complementary thermal expansion characteristics, it becomes possible to create composite or bimetallic structures that harmonize and work together effectively under varying temperatures. (iii) Thermal expansion and contraction can exert stress on structures, leading to potential damage or failure. Systems that leverage materials with varying coefficients of thermal expansion allow for the absorption and controlled distribution of thermal stress, preserving the structural integrity of the components. (iv) Mechanical joints or welds may experience stress and fatigue due to thermal cycling. Bimetallic joints or welds address this contradiction by utilizing materials with different thermal expansion rates, accommodating temperature-induced deformations without compromising the joint’s strength.
(v) Operational efficiency may be compromised by thermal effects on critical components, affecting performance. Incorporating materials with tailored thermal expansion properties helps optimize the performance of systems by mitigating the impact of temperature changes on key components. (vi) Sealing mechanisms, such as gaskets, may be compromised by thermal cycling, leading to leaks or inefficiencies. Using materials with specific thermal expansion characteristics in seals or gaskets helps maintain effective sealing even in the presence of temperature variations. (vii) Welded joints may experience stress and deformation during thermal cycling. Bimetallic welding or the use of materials with contrasting thermal expansion properties helps manage thermal effects on welded joints, ensuring integrity and durability. (viii) Precision components may lose alignment due to thermal expansion or contraction. Incorporating materials with different thermal expansion coefficients in the design allows for compensatory movements, helping maintain accurate component alignment across temperature variations.
Thermal properties can be utilized for the separation of materials through various techniques that leverage differences in thermal behavior among components. The separation techniques leverage thermal properties to exploit differences in boiling points, freezing points, sublimation temperatures, and other related characteristics. Understanding and manipulating these thermal properties enable the efficient separation and purification of various materials in industrial, laboratory, and manufacturing processes:
(i) Distillation is a separation technique based on differences in boiling points. A mixture is heated, and components with lower boiling points vaporize first, while those with higher boiling points remain in the liquid phase. Boiling point is a key thermal property influencing distillation. (ii) Crystallization involves dissolving a solute in a solvent at an elevated temperature and then cooling the solution. The solute crystallizes out of the solution, and impurities may remain in the liquid phase. Solubility and crystallization temperature are influenced by thermal properties. (iii) Fractional freezing separates components of a mixture based on differences in freezing points. The mixture is gradually cooled, and the component with the higher freezing point solidifies first. Freezing point is a key factor in this separation method. (iv) Sublimation involves the phase transition of a substance from a solid directly to a vapor without passing through the liquid phase. This technique can be used to separate volatile components from a mixture. Sublimation temperature is a critical factor in this process.
(v) Chromatographic techniques involve the separation of components based on their distribution between a mobile phase and a stationary phase. The separation is influenced by factors such as volatility, polarity, and interaction with the stationary phase. The volatility and thermal stability of components affect their separation in gas chromatography. (vi) Evaporation is a process where a liquid is converted to vapor by heating. This can be used to separate components with different boiling points. Boiling points and vapor pressures are key considerations in evaporation. (vii) Centrifugation separates materials based on differences in density. When a mixture is subjected to high-speed rotation, heavier components move outward, while lighter components remain closer to the center. Density variations influenced by temperature-dependent phase changes may play a role. (viii) DTA involves measuring the temperature difference between a sample and a reference material as they are subjected to controlled temperature changes. It is used to detect phase transitions and thermal events in materials. Specific heat capacity, enthalpy changes, and phase transition temperatures are essential in DTA.
(ix) Thermal Gravimetric Analysis (TGA) measures the weight change of a sample as a function of temperature. It is used to analyze decomposition, oxidation, and volatilization of materials. Thermal stability, decomposition temperature, and volatile content are crucial in TGA. (x) Pyrolysis involves heating organic materials in the absence of oxygen, causing thermal decomposition. It is used for the separation of components in complex mixtures. Decomposition temperature and thermal stability play a role in determining pyrolysis outcomes.
1: Mass of the moving object: [’10: Force’, ’11: Tension, Pressure’, ’39: Productivity’]
2: Mass of the non-moving object: [’30: Harmful external factors’]
3: Length of the moving object: [’29: Accuracy of manufacturing’]
4: Length of the non-moving object: [’13: Stability of the object’]
6: Area of the non-moving object: [’11: Tension, Pressure’]
7: Volume of the moving object: [’10: Force’, ’11: Tension, Pressure’]
8: Volume of the non-moving object: [’10: Force’, ’39: Productivity’]
10: Force: [‘1: Mass of the moving object’, ‘6: Area of the non-moving object’, ‘7: Volume of the moving object’, ‘8: Volume of the non-moving object’, ’20: Energy consumption of the non-moving object’, ’21: Power’, ’25: Time loss’, ’29: Accuracy of manufacturing’, ’32: Convenience of manufacturing’, ’37: Complexity of control and measurement’, ’39: Productivity’]
11: Tension, Pressure: [‘1: Mass of the moving object’, ‘6: Area of the non-moving object’, ’19: Energy consumption of the moving object’, ’23: Material loss’, ’25: Time loss’, ’30: Harmful external factors’, ’37: Complexity of control and measurement’, ’39: Productivity’]
12: Shape: [’10: Force’]
13: Stability of the object: [‘4: Length of the non-moving object’]
14: Strength: [’30: Harmful external factors’]
19: Energy consumption of the moving object: [’21: Power’]
20: Energy consumption of the non-moving object: [’10: Force’, ’30: Harmful external factors’]
21: Power: [‘3: Length of the moving object’, ’19: Energy consumption of the moving object’]
22: Energy loss: [’23: Material loss’]
23: Material loss: [’11: Tension, Pressure’]
25: Time loss: [‘1: Mass of the moving object’, ’10: Force’, ’11: Tension, Pressure’]
29: Accuracy of manufacturing: [‘3: Length of the moving object’]
30: Harmful external factors: [‘7: Volume of the moving object’, ’11: Tension, Pressure’, ’14: Strength’, ’20: Energy consumption of the non-moving object’]
32: Convenience of manufacturing: [’11: Tension, Pressure’]
35: Adaptability: [’12: Shape’, ’36: Complexity of the structure’, ’39: Productivity’]
36: Complexity of the structure: [’35: Adaptability’, ’37: Complexity of control and measurement’]
37: Complexity of control and measurement: [’11: Tension, Pressure’, ’36: Complexity of the structure’]
39: Productivity: [‘1: Mass of the moving object’, ‘8: Volume of the non-moving object’, ’11: Tension, Pressure’, ’35: Adaptability’]

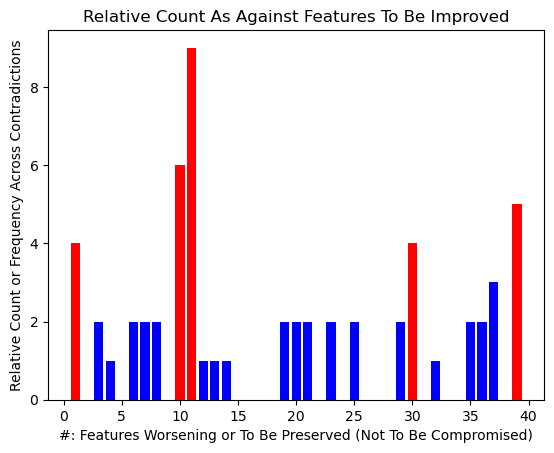

1/10 1/11 1/39 2/30 3/29 4/13 6/11 7/10 7/11 8/10 8/39 10/1 10/6 10/7 10/8 10/20 10/21 10/25 10/29 10/32 10/37 10/39 11/1 11/6 11/19 11/23 11/25 11/30 11/37 11/39 12/10 13/4 14/30 19/21 20/10 20/30 21/3 21/19 22/23 23/11 25/1 25/10 25/11 29/3 30/7 30/11 30/14 30/20 32/11 35/12 35/36 35/39 36/35 36/37 37/11 37/36 39/1 39/8 39/11 39/35
EXAMPLE: Printing involves the transfer of ink or toner onto a substrate (such as paper, fabric, or plastic) to create text or images. The process varies depending on the printing technology used, and thermal properties play a significant role in avoiding issues and ensuring successful printing. Understanding and carefully controlling the thermal properties involved in the printing process contribute to resolving common printing problems, ensuring consistent and high-quality output in a variety of printing technologies. Printers and printing technologies are designed with a focus on optimizing these thermal factors to address specific challenges and achieve desired printing outcomes. Thermal properties play a crucial role in addressing printing problems in various printing technologies. The interaction between materials, ink, and thermal processes influences the quality, efficiency, and reliability of printing.
Contradictions (14/30, 12/10, 20/30): The resolution of printing problems often involves addressing inherent contradictions that arise during the printing process. Accelerating ink drying time can lead to reduced adhesion to the substrate. Increasing printing speed may not allow sufficient time for ink drying. Preventing nozzle clogs requires avoiding ink with too high viscosity, but consistent droplet formation demands a certain level of viscosity. Achieving uniform color transfer requires sufficient heat, but excessive heat can cause issues. Rapid drying may conflict with the goal of energy-efficient printing.
Solution: Addressing these contradictions involves a combination of material formulation, equipment design, and process optimization to find a balance that meets the desired printing outcomes. Manufacturers and operators carefully manage thermal properties to achieve reliable and efficient printing while mitigating challenges associated with conflicting requirements.
To avoid printing issues, manufacturers and operators consider and control various thermal properties, such as melting points, viscosity, surface tension, and curing temperatures. This ensures that the ink or toner behaves predictably during the printing process, resulting in high-quality and reliable prints. Additionally, proper temperature control helps prevent equipment malfunctions, such as nozzle clogs, incomplete fusing, or other issues that could compromise the printing outcome. Optimizing the thermal properties of the ink and adjusting drying conditions to balance fast drying with adequate adhesion. Managing the thermal properties of the ink and adjusting drying mechanisms to match the printing speed, ensuring proper drying within the printing timeframe. Fine-tuning the thermal properties of the ink to maintain an optimal viscosity that prevents clogs while ensuring reliable droplet formation. Optimizing the thermal properties of the ribbon and adjusting transfer conditions to achieve uniform color without causing overheating. Balancing the thermal drying process to achieve consistency while optimizing energy efficiency through controlled temperature and drying mechanisms.
Printing involves the transfer of ink or toner onto a substrate (such as paper, fabric, or plastic) to create text or images. The process varies depending on the printing technology used, and thermal properties play a significant role in avoiding issues and ensuring successful printing. Inkjet Printing: Inkjet printers use tiny nozzles to eject droplets of liquid ink onto the substrate. The print head typically consists of micro-heaters that heat the ink, causing it to form vapor bubbles. The rapid expansion of these bubbles propels the ink droplets onto the paper. Controlling the thermal properties of the ink is crucial. Proper viscosity, surface tension, and thermal conductivity help ensure consistent droplet formation. The heating and cooling cycles must be precisely timed to prevent clogging of the nozzles and ensure accurate ink placement. Laser Printing: Laser printers use a laser to create an electrostatic image on a photosensitive drum or belt. Toner (powdered ink) is attracted to the charged areas, and then the toner is transferred to the paper and fused using heat. Toner has thermal properties that affect its melting point and adhesion to the paper. The fusing process involves applying heat and pressure to melt the toner and bond it to the substrate. Proper temperature control is essential to avoid issues like incomplete fusing or overheating. Thermal Transfer Printing: Thermal transfer printers use heat to transfer ink from a ribbon onto the substrate. The ribbon consists of a carrier film and an ink layer. When heated, the ink layer transfers to the substrate. The ink in the ribbon must have suitable thermal properties to transfer uniformly at the correct temperature. Proper temperature control during printing ensures consistent color transfer and prevents issues like incomplete or uneven printing. 3D Printing (Fused Deposition Modeling – FDM): FDM 3D printers deposit layers of thermoplastic filament onto a build plate. The filament is melted by a heated nozzle and deposited layer by layer to create a three-dimensional object. The filament’s thermal properties, including melting temperature and cooling characteristics, impact the printing process. Proper temperature control prevents issues such as warping, layer adhesion problems, or filament jams.
Offset Printing: Offset printing involves transferring ink from a printing plate to a rubber blanket and then onto the printing surface. The ink is typically oil-based. The ink’s viscosity and tackiness are affected by temperature. Controlling ink temperature helps achieve proper consistency for smooth transfer and prevents issues like uneven ink distribution or emulsification. Screen Printing: Screen printing involves pushing ink through a stencil onto the substrate using a mesh screen. The ink must have suitable rheological properties to pass through the screen. Drying or curing the ink involves controlled heating, and proper temperature management prevents issues like undercuring or overcuring.
