30: FLEXIBLE SHELLS AND THIN MEMBRANES : (A) Replace customary inflexible solid constructions with flexible membranes or thin films or shells (instead of a three dimensional structure) (B) Isolate an object (or system) from its potentially harmful external environment with flexible membranes or thin films or shells. For example , use an intermediary layer or shell that can change its properties to adapt to different conditions or requirements.
EXAMPLE: Stretchable Wears, Sails, Steel Foils (for packaging), Tea Bags, Sunscreen Lotions, Hydrodynamic Bearings, Protective Masks (on liquid or solid surfaces to protect from environmental hazards like heat or temperature or wind or dust etc), Thin Metal (Aluminium) Sheets / Blanket (For Wind and Temperature Protection), Paper Coatings, Solar Panels, Displays, Printing, Printed Electronics, Thin Film Coatings, Packaging etc.
SYNONYMS: Flexible Thin Films or Shells or Sheets
ACB:
Flexible shells and thin films can be incorporated into designs to add a level of flexibility and adaptability. This is especially valuable in situations where rigid structures may not be suitable. Leveraging flexible shells and thin films in product design facilitates rapid prototyping, customization, and quick adaptation to market demands. The use of thin films or flexible materials often contributes to a reduction in weight. This is advantageous in applications where weight is a critical factor, such as in aerospace or automotive design. Thin films can be used to coat surfaces or create compact structures, optimizing the use of space. This is relevant in scenarios where spatial constraints are significant. For instance: CFL lamps use a technology called fluorescence. When an electric current flows through the gas inside the lamp, it produces ultraviolet (UV) light. The UV light then interacts with a phosphor coating inside the lamp, generating visible light. CFL lamps are more energy-efficient than incandescent lamps, producing more light with less heat. CFL lamps have a longer lifespan compared to incandescent lamps, but they may be affected by frequent on-off cycles. CFL lamps contain a small amount of mercury, a hazardous material, which requires proper disposal.
Flexible shells and thin films can conform to different shapes and surfaces, allowing for better integration with existing structures or diverse materials. In certain applications, the introduction of flexible shells or thin films can enhance the overall performance of a system, providing specific properties or functionalities. Thin films, by their nature, use less material compared to thicker structures. This can contribute to resource efficiency and cost savings. The principle encourages engineers and designers to explore unconventional solutions by considering the advantages offered by flexible shells and thin films in specific situations.
At an abstract level, the “Flexible Shells and Thin Films” principle suggests that using thin, flexible materials in the design and construction of systems can lead to innovative solutions, resolving contradictions and improving various aspects of a product or process. This principle is particularly valuable in addressing contradictions related to weight, size, adaptability, and other factors.
The use of thin materials, sheets, or films is widespread across various industries for specific purposes. These materials are often chosen for their flexibility, lightweight nature, and specific properties. Thin materials for lightweight structures reducrd overall weight to enhance fuel efficiency. It balances structural integrity with weight reduction, addressing issues related to fatigue and maintenance. Designing products with thin, lightweight shells reduces material consumption, energy usage, and waste, while still achieving desired functionalities.
Ensuring biocompatibility, long-term reliability, and minimizing irritation or discomfort when biomedical sensors for monitoring parameters like temperature, pressure, or glucose levels.are applied to the skin.
Thin-Film Transistors (TFTs) technology in electronic devices like LCD screens enables the construction of high-resolution displays and electronic circuits. Achieves uniformity in thin-film deposition, avoiding defects, and ensuring consistent performance across large display areas.
Photovoltaic Cells for harnessing solar energy for electricity generation. Balancing the trade-off between efficiency and cost. Thin-film solar cells often have lower efficiency compared to traditional solar cells.
Thin Films for anti-reflective coatings, corrosion-resistant films. Enhancing optical properties or protecting surfaces. Ensuring uniform thickness and adhesion, minimizing defects, and maintaining durability over time.
Printed Electronics circuits on thin films. Creating flexible and lightweight electronic components. Achieving precision in printing, ensuring electrical conductivity, and addressing issues related to wear and tear.
Flexible Sensors for Wearables for monitoring physiological parameters or movement. Ensuring accuracy, durability, and comfort for the wearer.
Anti-glare coatings use thin film technology to selectively reflect and absorb specific wavelengths of light associated with glare. By minimizing the intensity of glare and reducing reflections, these coatings enhance visibility and provide a more comfortable visual experience. Anti-glare coatings on car shields or eyeglasses, often referred to as thin film coatings, work to reduce the intensity of glare from various light sources, such as headlights from oncoming vehicles during night driving. These coatings typically use interference or multilayer thin film technology to selectively block certain wavelengths of light. The effectiveness of anti-glare coatings relies on the principles of interference. When light passes through the layers of the thin film coating, some wavelengths are reflected, and others are transmitted. The coating is designed to selectively reflect specific wavelengths of light, especially those associated with glare. For example, it may target wavelengths in the blue light spectrum, which is often associated with harsh glare.
Glare is caused by intense, uncontrolled light. The anti-glare coating reduces the intensity of glare by selectively reflecting and absorbing certain wavelengths of light. Anti-glare coatings often come with anti-reflective properties, which means they reduce reflections on the surface of the lenses. This is beneficial for both the wearer and those interacting with the wearer, as reflections can be distracting and hinder visual clarity. This helps in minimizing the discomfort caused by bright lights, such as headlights or reflections. By reducing glare, the coating enhances overall visibility, especially in challenging lighting conditions. This is particularly beneficial for activities like night driving, where oncoming headlights can be a significant source of discomfort and distraction. Some anti-glare coatings also provide a level of scratch resistance, helping to protect the lenses from damage and maintain optical clarity over time. Many anti-glare coatings are designed to be easy to clean, reducing the accumulation of smudges and fingerprints on the lens surface. This contributes to clearer vision and a more comfortable viewing experience. The coating is carefully applied to ensure uniformity in drug distribution, facilitating accurate and consistent dosing.
The application of thin coatings of the same material with varied parameters on objects, such as medicines, is a technique used for various purposes. This process involves adjusting parameters like thickness, composition, or structure of the coating to achieve specific functionalities. The coating may be designed to release the drug at different rates, providing controlled release over time. This is crucial for medications that require sustained or delayed release within the body. The coating is designed to resist dissolution in the acidic environment of the stomach and dissolve in the alkaline environment of the small intestine. This protects the drug from stomach acids and enhances its absorption in the intestine. The thickness and composition of the coating can be adjusted to minimize the taste of bitter or unpleasant components in the medicine, making it more acceptable for pediatric patients. The coating may act as a barrier to external factors like light, moisture, or air, preserving the stability and effectiveness of sensitive pharmaceutical components. A thin protective coating can be applied to pharmaceuticals to prevent degradation, oxidation, or moisture absorption, thereby extending their shelf life. The coating may be designed to degrade over time, allowing for controlled release of drugs or enhancing the integration of the device with surrounding tissues
The tissue paper is an example of a flexible and thin sheet material, it is distinct from certain technical applications of thin films or sheets, such as those used in electronics or advanced materials. Tissue paper’s characteristics are tailored to its specific applications in everyday use, emphasizing softness, flexibility, and a thin structure. tissue paper is an example of a flexible and thin sheet material. Tissue paper is a lightweight paper product that is typically characterized by its thinness and flexibility. Tissue paper is notably thin compared to other types of paper. It is manufactured to be lightweight and delicate, making it easy to fold, crumple, or manipulate. Tissue paper is highly flexible and pliable. Its thin nature allows it to bend easily and conform to various shapes. This flexibility makes it suitable for a variety of applications. Tissue paper is often chosen for its soft and gentle texture. This characteristic is desirable for uses such as facial tissues, where comfort against the skin is important. Tissue paper is widely used for a range of applications, including: Facial Tissues: Soft and gentle for facial use, Often made as thin sheets for sanitary use. Used as decorative and lightweight wrapping material. Valued for its flexibility and ease of use in various craft projects. Tissue paper is also porous, allowing air and moisture to pass through. This characteristic is especially important for its use in facial tissues and other hygiene products.
Carbon copy paper is commonly used for invoices, receipts, order forms, and other documents where duplicate or triplicate copies are needed. Carbon copy paper, also known as carbonless paper or NCR (No Carbon Required) paper, is a type of paper that allows the creation of duplicate or triplicate copies without the need for carbon paper. It consists of multiple layers with special coatings that react to pressure, enabling the transfer of writing or printing from one sheet to another. The top sheet is the sheet on which the original writing or printing is done. It has a coating on the back (Coated Back, CB) that contains microcapsules filled with a colorless dye and a developer. Between the top sheet and subsequent copies, there may be one or more intermediate sheets. These sheets are also coated on both sides (Coated Front and Back, CFB) with microcapsules containing the same colorless dye and developer. The bottom sheet is the last sheet in the sequence and is coated only on the front (Coated Front, CF). It contains a reactive clay that reacts with the colorless developer when pressure is applied.
When someone writes or prints on the top sheet (CB), the pressure exerted by the pen or printer causes the microcapsules on the back of the top sheet to break. The broken microcapsules release the colorless dye and developer onto the front of the intermediate sheet (CFB) immediately below. A chemical reaction between the dye and developer results in the formation of a visible color. If there are additional intermediate sheets, the process repeats. The color is transferred from one intermediate sheet to the next until it reaches the bottom sheet. The color on the bottom sheet is the final copy. Since the bottom sheet contains a reactive clay, it reacts with the developer to create a visible mark without the need for pressure from a writing or printing instrument.
Unlike traditional carbon paper, carbon copy paper doesn’t require an additional sheet of carbon to create copies. The copies produced on carbon copy paper are often neater and cleaner than those made with traditional carbon paper, as there is no risk of smudging or messy carbon transfer. Carbon copy paper can produce multiple copies simultaneously, making it convenient for various business and administrative purposes. The process is efficient and convenient, eliminating the need to separate multiple sheets of carbon paper and ensuring that all copies are legible.
The invention of video tape technology by Charles P. Ginsburgan, American engineer, who developed the concept as part of his work at Ampex Corporation in the early 1950s, revolutionized the way audiovisual content was recorded, stored, and reproduced. It addressed the need for convenient and accessible methods of capturing and sharing moving images, laying the groundwork for subsequent advancements in digital media. Charles Ginsburg, along with his team, created the first practical and commercially successful videotape recorder known as the Ampex VRX-1000. Video tapes were widely used for several decades, with various formats such as VHS, Betamax, and others dominating the consumer market. However, with the advent of digital technologies, video tapes became obsolete. Digital formats, including DVDs and streaming services, replaced analog tapes, offering higher quality, greater storage capacity, and improved durability.
Video tape technology involves the magnetic recording of video and audio signals onto a tape. The process includes the following steps: The video and audio signals are captured by a camera and microphone, respectively. The signals undergo processing to convert them into electrical impulses. The processed signals are then recorded onto the magnetic coating of the video tape. The magnetic particles on the tape align themselves according to the varying magnetic fields produced by the recorded signals. During playback, the tape passes over a magnetic head. The varying magnetic fields on the tape induce electrical currents in the head, reproducing the original video and audio signals. Video tape technology allowed for the storage and reproduction of audiovisual content. This was a significant advancement, providing a means to capture and share moving images with better quality and convenience than earlier technologies like film.
Video tapes introduced the concept of time-shifting, allowing viewers to record television broadcasts and watch them at a later time. This addressed the issue of missing live broadcasts. Video tapes provided the ability to edit recorded content, offering a level of flexibility and creativity in post-production. Video tapes facilitated the mass production and distribution of content, making it more accessible to a wider audience. Early video tapes had limited storage capacity compared to modern digital storage solutions. Over time, the magnetic coating on tapes could deteriorate, leading to a loss of quality and potential data loss.
The tea bag exemplifies this principle along with the principle of porous material. It serves multiple functions (containment, infusion, portion control) into a single, user-friendly design. It addresses various problems associated with traditional loose-leaf tea brewing, making the process more accessible, convenient, and standardized for consumers. The tea bag simplifies the process of making tea by combining multiple functions into a single, convenient package. The tea bag serves as a container for tea leaves or herbs. It is typically made of filter paper, which allows water to flow through while containing the tea leaves. Placing the tea bag directly into hot water eliminates the need for loose tea leaves and a separate strainer. This simplifies the tea-making process. Tea bags are often designed for single use, making them a convenient and hygienic option for individual servings of tea. The porous nature of the tea bag allows water to extract flavors from the tea leaves or herbs, facilitating the brewing process. Traditional loose-leaf tea brewing can be messy and requires additional tools like a tea strainer.
The tea bag simplifies the brewing process by containing the tea leaves in a disposable, easy-to-use packet. Measuring loose tea leaves for each cup can be imprecise and time-consuming. Tea bags provide pre-measured portions (prior action), ensuring consistency and convenience (convenience of use). Loose tea leaves can create a mess during brewing and require additional cleaning. Tea bags contain the leaves, preventing mess and simplifying cleanup. Brewing loose tea often requires estimating quantities for individual servings. Tea bags are designed for single servings, making it easy to prepare tea for one person without waste. Problem: Brewing loose tea may require extra time and effort. Tea bags offer a convenient and quick method for brewing tea, especially in busy or on-the-go situations. Storing loose tea leaves may require additional containers, and packaging can be less convenient. Tea bags are individually packaged, providing a convenient and hygienic storage solution. Achieving consistent flavor with loose tea may be challenging. Tea bags provide a standardized and controlled brewing process, ensuring a consistent flavor profile (Dynamicity).
Gold plating offers a balance between the desirable properties of gold and the practical considerations associated with using this precious metal. Gold plating is a process that allows for the selective application of gold onto the surface of objects made from other materials. This is typically done through electroplating, where an electric current is used to reduce dissolved metal cations from a solution and form a thin, adherent metal coating on the surface of the object. The object to be gold plated is thoroughly cleaned to remove any dirt, grease, or oxidation. The object is often treated with a special solution or coating to prepare its surface for the gold plating process. The object is immersed in an electroplating bath containing a solution of gold salts. The bath typically includes gold cyanide or gold chloride. An electric current is passed through the bath, causing the gold ions to be reduced and deposit onto the surface of the object. The gold layer builds up gradually, forming a thin and even coating. After the desired thickness of the gold layer is achieved, the object is removed from the bath and carefully rinsed to remove any residual plating solution.
Now, as for why metals or objects are gold plated instead of being made entirely of gold, there are several reasons. This is done for various reasons, including cost considerations, aesthetics, durability, electrical conductivity, and resistance to tarnish or corrosion. Gold is an expensive precious metal. Coating an object with a thin layer of gold through plating is a cost-effective way to provide the appearance and properties of gold without using a large quantity of the expensive material. Gold plating allows for the creation of decorative items with the luxurious appearance of gold. It is often used in jewelry, watches, trophies, and other ornamental objects. Pure gold is a soft metal and may not be suitable for certain applications where hardness and durability are essential. By plating a harder metal with gold, the object can benefit from the aesthetic appeal of gold while retaining the durability of the base material. Gold is an excellent conductor of electricity. In electronic and electrical applications, gold plating is used on connectors and contacts to ensure good conductivity and prevent corrosion. Gold is highly resistant to tarnishing or corrosion. Gold-plated objects, especially those used in jewelry or decorative items, maintain their appearance over time.
The thinness of surgical gloves offers several benefits to healthcare professionals, especially surgeons and medical personnel involved in delicate procedures. Thin surgical gloves provide high tactile sensitivity, allowing healthcare professionals to feel and manipulate tissues, instruments, and sutures with precision. This is particularly crucial during intricate surgeries where fine motor skills and a sense of touch are essential, such as microsurgery or procedures requiring delicate tissue handling. Thin gloves allow for enhanced fine motor control of the fingers, facilitating intricate and precise movements. Surgeons and medical personnel can perform delicate procedures with greater accuracy, minimizing the risk of inadvertent damage to tissues or structures. Thin gloves provide better tactile feedback, allowing healthcare professionals to sense the resistance, texture, and contours of tissues more accurately (Feedback). Surgeons rely on tactile feedback to assess tissue conditions, make informed decisions during surgery, and detect abnormalities.
Thin surgical gloves offer increased comfort, reducing hand fatigue during prolonged surgical procedures. Healthcare professionals can maintain focus and precision for extended periods without experiencing discomfort or restriction of hand movements. Thin gloves allow better sensitivity to temperature changes, which is important in detecting warmth or abnormalities during surgery. Surgeons can identify subtle temperature differences that may indicate issues like inflammation or inadequate blood supply to tissues. Thin gloves are easier to put on and take off, saving valuable time during surgical preparations and procedures (throw and replace – cheap short living objects). Quick and efficient glove changes contribute to maintaining a sterile environment in the operating room. The reduced thickness minimizes hand fatigue, enabling healthcare professionals to maintain focus and precision throughout lengthy surgeries.
Surgical gloves are commonly made from latex, nitrile, or neoprene materials. Latex gloves are elastic, provide good tactile sensitivity, and offer a high level of comfort. Nitrile gloves are latex-free, resistant to punctures and chemicals, and provide a good alternative for individuals with latex allergies. Neoprene gloves offer good resistance to chemicals and provide a good barrier against biological hazards. The selection of different materials for surgical gloves involves changing parameters, such as elasticity, allergy considerations, chemical resistance, and comfort. This aligns with the principle of addressing a problem by changing the physical or chemical state of an object (parameter change). Different materials have varying costs and performance characteristics. The selection of materials involves optimizing cost-effectiveness while meeting the necessary performance standards for surgical gloves.
At an abstract level, the “Flexible Shells and Thin Films” principle suggests that businesses should embrace adaptability, innovation, and agility in their strategies and operations. This involves thinking beyond rigid structures, processes, or business models and considering more flexible, dynamic approaches to problem-solving.Adopting business models that allow for quick adaptation to changing market conditions, customer needs, and technological advancements. Developing dynamic and flexible business strategies that can be adjusted in response to emerging opportunities or challenges. Seeking ways to optimize resource usage by adopting flexible and efficient operational practices. Fostering a culture of collaborative innovation that encourages employees to think creatively, adapt to new ideas, and continuously improve processes. Developing leadership styles that embrace adaptability, encourage learning, and navigate uncertainties with resilience.
In the context of business contradictions, the “Flexible Shells and Thin Films” principle can be applied to address challenges and conflicts that arise in various aspects of business operations. This principle encourages businesses to consider the use of thin, flexible materials metaphorically, seeking innovative solutions that provide adaptability, efficiency, and improved performance. Adopting flexible business models or processes that streamline operations, reduce waste, and enhance efficiency without compromising product quality. Introducing flexible innovation frameworks that allow for continuous improvement and adaptation without disrupting core business stability. Implementing flexible production processes or modular product designs that enable customization without sacrificing efficiency. Implementing agile project management methodologies or flexible prototyping approaches that expedite time-to-market while minimizing risks.
1: Mass of the moving object: [’36: Complexity of the structure’]
2: Mass of the non-moving object: [‘6: Area of the non-moving object’, ’23: Material loss’]
4: Length of the non-moving object: [’25: Time loss’, ’39: Productivity’]
5: Area of the moving object: [‘9: Speed’, ’10: Force’, ’22: Energy loss’, ’24: Information loss’, ’26: Amount of substance’, ’35: Adaptability’, ’38: Level of automation’]
6: Area of the non-moving object: [‘2: Mass of the non-moving object’, ’16: Action time of the non-moving object’, ’22: Energy loss’, ’24: Information loss’, ’37: Complexity of control and measurement’]
7: Volume of the moving object: [’26: Amount of substance’, ’33: Convenience of use’]
8: Volume of the non-moving object: [’21: Power’, ’31: Harmful internal factors’]
9: Speed: [‘5: Area of the moving object’, ’17:Temperature’]
12: Shape: [’14: Strength’, ’29: Accuracy of manufacturing’]
13: Stability of the object: [’23: Material loss’, ’30: Harmful external factors’, ’33: Convenience of use’, ’35: Adaptability’]
14: Strength: [’12: Shape’, ’17:Temperature’]
15: Action time of the moving object: [‘7: Volume of the moving object’]
17:Temperature: [‘9: Speed’, ’14: Strength’, ’18: Brightness, Visibility’, ’26: Amount of substance’]
18: Brightness, Visibility: [’12: Shape’]
19: Energy consumption of the moving object: [’32: Convenience of manufacturing’]
21: Power: [‘8: Volume of the non-moving object’, ’36: Complexity of the structure’]
22: Energy loss: [‘5: Area of the moving object’, ‘6: Area of the non-moving object’]
23: Material loss: [‘7: Volume of the moving object’, ’13: Stability of the object’, ’30: Harmful external factors’]
24: Information loss: [‘5: Area of the moving object’, ‘6: Area of the non-moving object’]
25: Time loss: [‘4: Length of the non-moving object’, ’27: Reliability’, ’38: Level of automation’]
26: Amount of substance: [’29: Accuracy of manufacturing’]
26: Amount of substance: [’29: Accuracy of manufacturing’]
27: Reliability: [’25: Time loss’]
29: Accuracy of manufacturing: [’12: Shape’, ’13: Stability of the object’, ’26: Amount of substance’]
30: Harmful external factors: [’13: Stability of the object’]
31: Harmful internal factors: [‘8: Volume of the non-moving object’]
33: Convenience of use: [’13: Stability of the object’]
35: Adaptability: [‘5: Area of the moving object’, ’13: Stability of the object’]
36: Complexity of the structure: [‘1: Mass of the moving object’, ’21: Power’]
37: Complexity of control and measurement: [‘6: Area of the non-moving object’, ’10: Force’, ’13: Stability of the object’]
38: Level of automation: [’25: Time loss’]
39: Productivity: [‘4: Length of the non-moving object’]

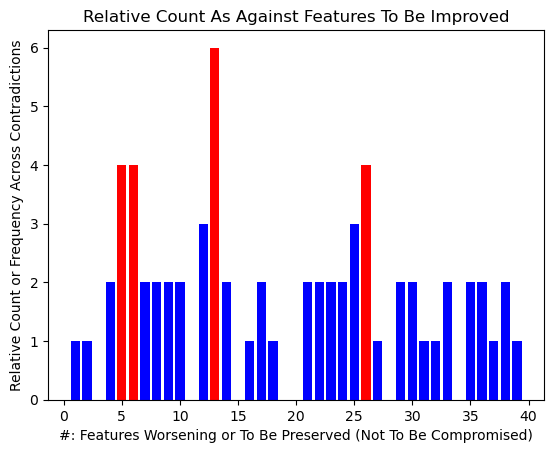

1/36 2/6 2/23 4/25 4/39 5/9 5/10 5/22 5/24 5/26 5/35 5/38 6/2 6/16 6/22 6/24 6/37 7/26 7/33 8/21 8/31 9/5 9/17 12/14 12/29 13/23 13/30 13/33 13/35 14/12 14/17 15/7 17/9 17/14 17/18 17/26 18/12 19/32 21/8 21/36 22/5 22/6 23/7 23/13 23/30 24/5 24/6 25/4 25/27 25/38 26/29 27/25 29/12 29/13 29/26 30/13 31/8 33/13 35/5 35/13 36/1 36/21 37/6 37/10 37/13 38/25 39/4
EXAMPLE: Corrosion leads to the gradual loss of metal material, weakening the structure and affecting its mechanical properties. Corroded metals may lose their original strength, leading to structural failures, particularly in critical applications such as bridges, pipelines, or aircraft. Corrosion can result in a change in the appearance of metals, often making them less visually appealing. This is a concern in architectural structures and consumer goods. In components like electrical contacts or pipelines, corrosion can disrupt the functionality of the system by hindering the flow of electricity or fluids. Repair and replacement of corroded components can result in significant economic costs, affecting industries, infrastructure, and maintenance budgets. Corrosion can lead to the release of metal ions and corrosion products into the environment, potentially causing pollution and environmental damage.
Contradictions: (31/8, 13,30): Painting iron serves as a multifaceted solution by preventing rust, enhancing aesthetics, improving durability, and addressing contradictions related to iron’s strength and vulnerability to corrosion (31) with out adding to the volume or weigh tof the object (8).
Solution: Corrosion occurs when metals react with their environment, leading to the deterioration of the metal’s properties. Metals have a natural tendency to react with oxygen and other elements in their surroundings. The most common form of corrosion is the oxidation of metals, where metal atoms lose electrons, resulting in the formation of metal ions and compounds. Water or moisture is a common catalyst for corrosion, providing the necessary medium for this corrosion or electrochemical reactions to take place. Iron is a strong material but is susceptible to corrosion. Painting provides a protective layer that maintains the strength of iron while preventing it from the corrosion.
Understanding the corrosion process and implementing preventive measures are essential in preserving the integrity and longevity of metal structures and components. Different materials and environments require tailored corrosion control strategies. The choice of paint composition and application methods plays a crucial role in the effectiveness of rust prevention and the overall protection of iron surfaces. Applying coatings, such as paint, zinc, or other protective layers, creates a barrier between the metal and the environment. Introducing corrosion inhibitors to the environment or incorporating them into the metal’s surface can slow down or prevent corrosion. Coating iron or steel with a layer of zinc (galvanization) provides sacrificial protection, as zinc corrodes more readily than iron. Choosing corrosion-resistant alloys for specific applications can mitigate the effects of corrosion. Implementing cathodic protection systems, such as sacrificial anodes or impressed current systems, helps control the electrochemical corrosion process.
